Tonmat Insulated EPS Roof Sandwich Panel – Cost-Effective Thermal Solution
Last Updated 12 Nov 2025
R-EPS
Tonmat Group
10
Bac Ninh Province > Dai Dong Commune
7 days
Online Technical Support, Project Solution Capability, Others
Warehouse, Workshop, Garage, Shed, Cold Storage, Temporary Buildings, Residential Housing
Thermal and Sound Insulation
EPS Insulated Panel for Thermal and Sound Insulation
TONMAT GROUP
EPS (Expanded Polystyrene) foam core, Steel/Stainless Steel sheets (surface)

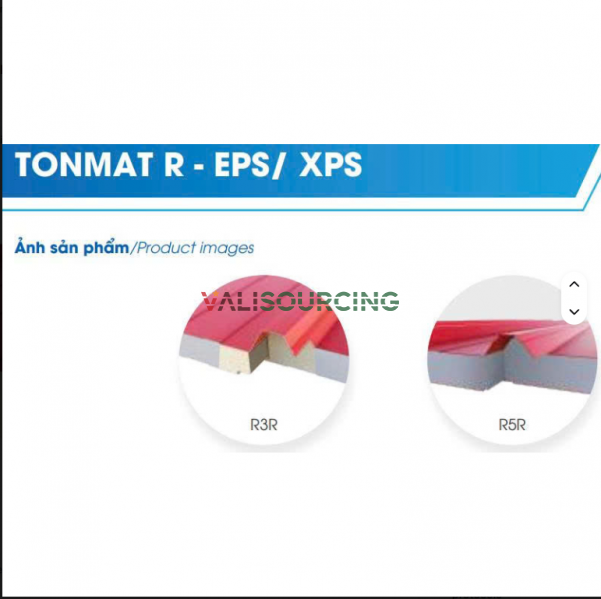

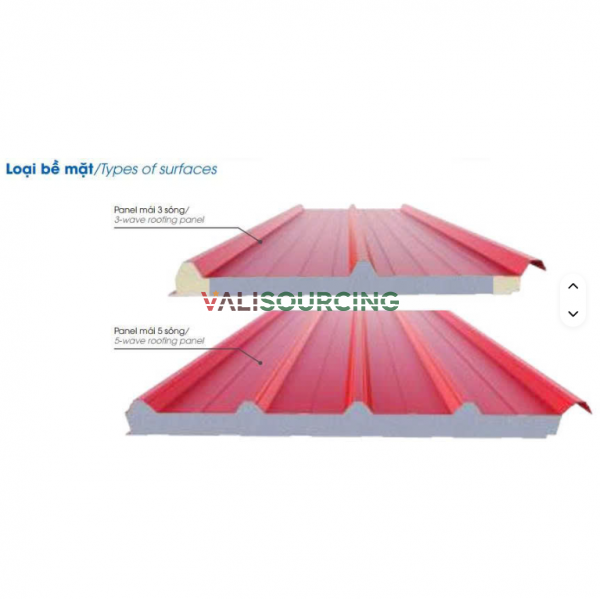

3-Wave Roofing Panel, 5-Wave Roofing Panel
3-Wave Panel: Thickness 50 / 75 mm | Effective Width 1000 mm | Max Length ≤18,000 mm 5-Wave Panel: Thickness 50–100 mm | Effective Width 1010 mm | Max Length ≤18,000 mm
Core Material: EPS (8–25 kg/m³),compatible with PUR/PIR (40–60 kg/m³) and XPS (20–40 kg/m³) Surface Metal Thickness: 0.35–0.80 mm (3-Wave),0.18–0.50 mm (5-Wave)
More Than 5 Years
1. Overview

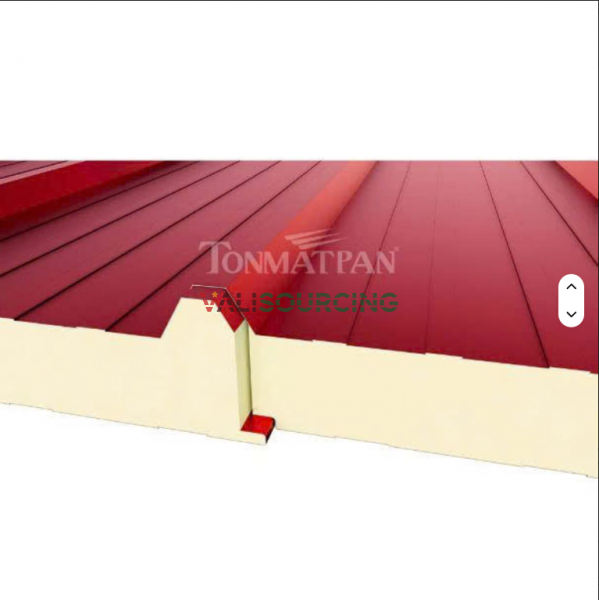

The Tonmat EPS Roof Sandwich Panel is a high-performance, budget-friendly roofing solution designed for industrial and commercial construction. With an EPS foam core sandwiched between steel or stainless steel sheets (0.03–0.05 cm), it delivers superior thermal and sound insulation, reducing energy costs while maintaining internal comfort.
2. Key Advantages
- Excellent Insulation: EPS core ensures stable temperatures and soundproofing. Optional PUR/PIR (40–60 kg/m³) or XPS (20–40 kg/m³) cores available.
- Flexible Design: 3-wave and 5-wave profiles, thickness 50–100 mm, effective width 1000–1010 mm, max length ≤18 m.
- Quick Installation & Customization: Supports custom logos, packaging, and graphics (MOQ: 1 m²).
- Durable & Long-Lasting: Over 5 years warranty with online technical support.
3. Applications
- Warehouses & Workshops: Thermal comfort and noise reduction.
- Garages, Sheds & Cold Storage: Insulated and durable roofing.
- Temporary Buildings & Residential Housing: Effective soundproofing and thermal control.
4. Logistics & Supply
- Packaging: 1000 m² per container
- Annual Capacity: 2 million m²
- Lead Time: 3 days for 1–100 m², negotiable for larger orders
The Tonmat EPS Roof Sandwich Panel is a high-performance, budget-friendly roofing solution designed for industrial and commercial construction. With an EPS foam core sandwiched between steel or stainless steel sheets (0.03–0.05 cm), it delivers superior thermal and sound insulation, reducing energy costs while maintaining internal comfort.
2. Key Advantages
- Excellent Insulation: EPS core ensures stable temperatures and soundproofing. Optional PUR/PIR (40–60 kg/m³) or XPS (20–40 kg/m³) cores available.
- Flexible Design: 3-wave and 5-wave profiles, thickness 50–100 mm, effective width 1000–1010 mm, max length ≤18 m.
- Quick Installation & Customization: Supports custom logos, packaging, and graphics (MOQ: 1 m²).
- Durable & Long-Lasting: Over 5 years warranty with online technical support.
3. Applications
- Warehouses & Workshops: Thermal comfort and noise reduction.
- Garages, Sheds & Cold Storage: Insulated and durable roofing.
- Temporary Buildings & Residential Housing: Effective soundproofing and thermal control.
4. Logistics & Supply
- Packaging: 1000 m² per container
- Annual Capacity: 2 million m²
- Lead Time: 3 days for 1–100 m², negotiable for larger orders
Tonmat Insulated EPS Roof Sandwich Panel – Cost-Effective Thermal Solution
Pricing
US$ 11.32
10 - 9999 Pieces
US$ 8.24
>= 10000 Pieces
