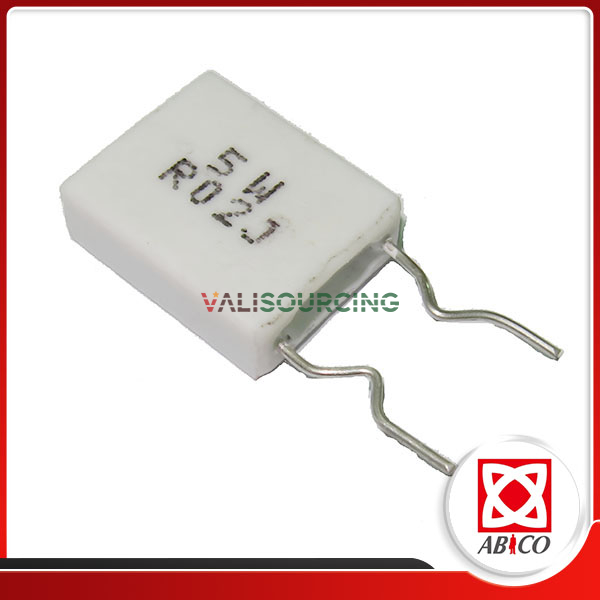

Metal Plate Cement MPR resistors are high power resistors, made from quality metal plates, coated with insulating cement. The product has the ability to withstand heat, withstand large loads and high stability, suitable for industrial applications, consumer electronics, and circuits requiring strong performance.

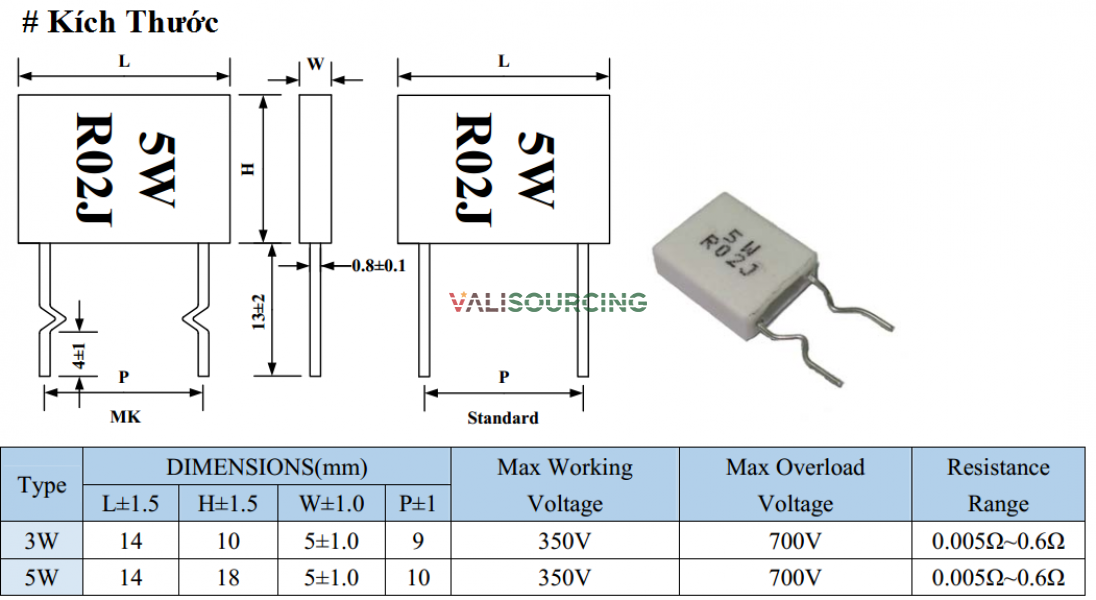

Foot diameter: 0.8 ± 0.1 mm
Distance from body to foot: 13 ± 2 mm
Foot shape: Standard or hook type (MK) for easy installation.

1. Outstanding features

Good heat resistance: Insulated cement shell, ensuring safety and stability during continuous operation.
High Power: 3W or 5W options meet a variety of needs.
Wide resistance range: From 0.005Ω to 0.6Ω, suitable for filter circuit, load circuit and current limiting circuit.
High voltage resistance: Working voltage up to 350V, overload resistance up to 700V.
Compact design: Optimal size, easy to assemble on printed circuit board (PCB).
High reliability: Stable operation, little change in resistance value over time.


2. Typical applications

Power circuit, switching power circuit, noise filter circuit.
Household appliances: TV, air conditioner, refrigerator.
Industrial control systems, protection circuits.
Applications requiring low power resistors but high current capacity.


3. Benefits of choosing the product

Optimized maintenance costs thanks to long service life.
Increased equipment safety thanks to good load-bearing capacity and insulation.
Flexible installation with many different foot types.
Meet international technical standards.
